Automatic Horizontal and Vertical Flame Tester UL 94

Production introduction:

The GD-UL94 Horizontal Vertical Flame Test Chamber is designed to meet multiple international standards, including UL94, IEC 60695-11-10, and ISO 1210. This chamber is perfect for testing the flammability performance of materials used in equipment and appliances. With its large 0.55m³ test box, it ensures sufficient air supply for accurate testing. The chamber features a corrosion-resistant, black-painted interior and a large glass observation window for easy combustion process monitoring. Its ergonomic design and 304 stainless steel clamps make it user-friendly and durable. Whether you need to perform horizontal or vertical burning tests, the GD-UL94 offers precise flame height control and automated timing, making it an essential tool for material safety testing.

Test standards:

• Horizontal and vertical combustion test: UL94 IEC 60695-11-10, IEC 60707, ISO 1210, GB/T 2408; GB 9493-2001
• 50W vertical combustion test: UL94 V-0, V-1, V-2, IEC 60695-11-10, ISO 1210, GB/T 2408, GB/T 5169.16/22;
• 500W vertical combustion test: UL94 5VA, 5VB, IEC 60695-11-20, GB/T 5169.15/17;
• Vertical combustion test of thin film materials: VTM-0, VTM-1 or VTM-2, ISO 9773;
• Test method for combustion performance of foam plastics - Horizontal combustion method: GB/T 8332, ISO 9772: HBF, HF-1, or HF-2
• Equipped with: 500W flame flow control system
• Optional: GB/T 8332-2008, foam vertical combustion performance test

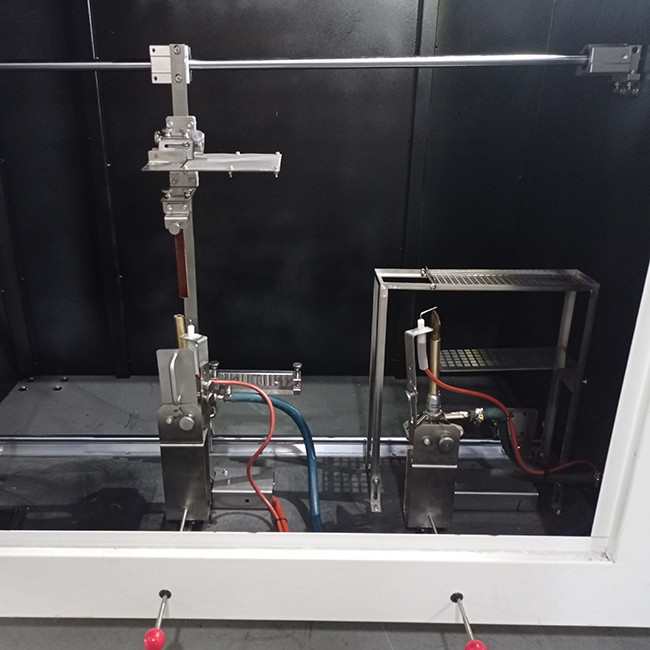

Cabinet and fixture features:

• The chamber features a large test box with dimensions of 1200mm x 600mm x 1300mm, providing ample space for testing.
• The interior of the chamber is painted black to resist corrosion and meet standard testing requirements.
• It includes a large glass observation window for easy monitoring of the combustion process.
• The chamber is constructed with 304 stainless steel clamps, which are both corrosion-resistant and durable.
• The wedge-shaped bracket is designed to be freely retractable, accommodating special material testing needs.
• The flame height scale is made of 304 stainless steel with an accuracy of 0.5mm.
• The chamber features an ergonomic design with easy access to samples and a burner tie rod for smooth operation.
• The integrated design combines the test and control parts, facilitating easy installation and debugging.
• The cabinet is painted to ensure long-term durability and resistance to environmental factors.
• The industrial appearance design is both aesthetic and functional, ensuring ease of use in laboratory settings.

Control system:

1. Programmable controller 7" touch screen to realize control/detection/calculation/data display;

2. Pulse high voltage electronic automatic ignition.

3. Timing button with PLC to automatically record and store the burning time.

4. Time timer detects the time when the flame reaches the 25, 100mm mark line. Precision 0.1s, automatic timing;

5. No hand-held stopwatch or manuscript timing is required; The test time system automatically records and generates the test report;

Specification:
